Description
In addition to their trench excavation capabilities, the EK chain cutters are also suitable for mining medium-hard minerals with compressive strengths ranging from 15 to 60 MPa, where drill and blast methods are not feasible. This makes them a versatile tool for a variety of excavation and mining projects.
One of the key benefits of the EK chain cutters is that they reduce wear and tear on the excavator swing gear, as well as providing a 40% energy saving for equivalent production rates compared to conventional rotary drum cutters without the central chain. This makes them a cost-effective and environmentally friendly choice for contractors and construction companies.
In summary, the Kemroc EK chain cutters are a cutting-edge solution for excavation and mining projects. With their patented cutting attachment, efficient and vibration-free operation, and ability to reduce wear and tear on excavator swing gear, they are a must-have tool for any contractor or construction company looking to enhance their operations
Compare models
| EK 15 | EK 20 | EK 40 | EK 60 | EK 100 | EK 110 | EK 140 | EK 150 | EK 160 | EK 220 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Recom. excavator weight: | 1.5 – 3 t | 2 – 4 t | 5 – 10 t | 10 – 17 t | 18 – 30 t | 25 – 32 t | 30 – 45 t | 35 – 50 t | 35 – 50 t | 50 – 70 t |
| Rated power | 15 kW | 22 kW | 44 kW | 60 kW | 100 kW | 110 kW | 140 kW | 150 kW | 150 kW | 20 kW |
| Recom. oil flow: | 15 – 30 l/min | 20 – 40 l/min | 70 – 90 l/min | 100 – 125 l/min | 190 – 210 l/min | 240 – 280 l/min | 240 – 280 l/min | 280 – 330 l/min | 290 – 340 l/min | 500 – 580 l/min |
| Cutter head width (B) | 370 mm | 480 mm | 500 mm | 500 mm | 600 | 700 | 800 mm | 600 | 700 | 800 mm | 800 | 900 | 1,000 mm | 800 | 900 | 1,000 mm | 800 | 900 | 1,000 mm | 8920 mm |
EK 15
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 15 is a KEMROC traded product.
EK 20
Recommended excavator weight: 2–4 t
Rated power: 22 kW
Recommended rotation speed: 140 rpm
Recommended oil flow at 150 bar: 20–40 l/min
Maximum oil flow: 50 l/min
Maximum operating hydraulic pressure: 300 bar
Maximum torque at max. hydraulic pressure: 1,000 Nm
Maximum cutting force at max. hydraulic pressure: 7,692 N
Maximum uniaxial compressive strength: 25 MPa

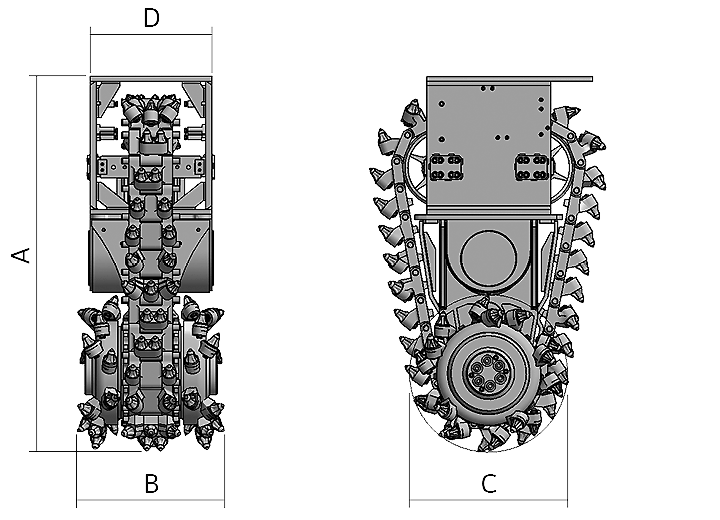

Drum cutter length (A): 700 mm
Cutter head width (B): 480 mm
Cutter drum diameter (C): 260 mm
Width of gearbox (D): 480 mm
Weight: 170 kg
Number of picks in cutter drums: 44 Pcs
Number of picks in the cutter chain: 27 Pcs
Standard pick 1): ER 16/29/25/14 C
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 20 is a KEMROC traded product.
EK 40
Recommended excavator weight: 5–10 t
Rated power: 44 kW
Recommended rotation speed: 90 rpm
Recommended oil flow at 150 bar: 50–90 l/min
Maximum oil flow: 120 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 3,700 Nm
Maximum cutting force at max. hydraulic pressure: 12,333 N
Maximum uniaxial compressive strength: 30 MPa
Drum cutter length (A)”: 1,500 mm
Cutter head width (B):500 mm
Cutter drum diameter (C): 600 mm
Width of gearbox (D): 450 mm
Weight: 900 kg
Number of picks in cutter drums: 56 Pcs
Number of picks in the cutter chain: 55 Pcs
Standard pick 1): ER 19/48/32/20 H
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 40 is a KEMROC traded product.
Available from 2020.
EK 60
Recommended excavator weight: 10–17 t
Rated power: 60 kW
Recommended rotation speed: 70 rpm
Recommended oil flow at 150 bar: 130–200 l/min
Maximum oil flow: 220 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 11,000 Nm
Maximum cutting force at max. hydraulic pressure: 27,500 N
Maximum uniaxial compressive strength: 50 MPa
Drum cutter length (A): 1,900 mm
Cutter head width (B): 500 mm
Cutter drum diameter (C): 800 mm
Width of gearbox (D): 450 mm
Weight: 1,300 kg
Number of picks in cutter drums: 56 Pcs
Number of picks in the cutter chain: 55 Pcs
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 60 is a KEMROC traded product.
Available from 2020.
Standard pick 1): ER 19/48/32/20 H
EK 100
Recommended excavator weight: 18–30 t
Rated power: 100 kW
Recommended rotation speed: 70 rpm
Recommended oil flow at 150 bar: 180–250 l/min
Maximum oil flow: 260 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 18,300 Nm
Maximum cutting force at max. hydraulic pressure: 45,750 N
Maximum uniaxial compressive strength: 80 MPa
Drum cutter length (A): 1,900 mm
Cutter head width (B): 600 mm | 700 mm | 800 mm
Cutter drum diameter (C): 800 mm
Width of gearbox (D): 550 mm
Weight: 2,400 – 2,600 kg
Number of picks in cutter drums: 28 | 44 | 52 Pcs
Number of picks in the cutter chain: 54 Pcs
Standard pick 1): ER 17/75/70/30 Q
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 100 is a KEMROC traded product.
Available from 2020.
EK 110
Recommended excavator weight: 25–32 t
Rated power: 110 kW
Recommended rotation speed: 70 rpm
Recommended oil flow at 150 bar: 240–300 l/min
Maximum oil flow: 300 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 24,500 Nm
Maximum cutting force at max. hydraulic pressure: 61,250 N
Maximum uniaxial compressive strength: 80 MPa
Drum cutter length (A): 1,900 mm
Cutter head width (B): 600 mm | 700 mm | 800 mm
Cutter drum diameter (C): 800 mm
Width of gearbox (D): 550 mm
Weight: 2,400 – 2,600 kg
Number of picks in cutter drums: 28 | 44 | 52 Pcs
Number of picks in the cutter chain: 54 Pcs
Standard pick 1): ER 17/75/70/30 Q
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 100 is a KEMROC traded product.
Available from 2020.
EK 140
Recommended excavator weight: 34–45 t
Rated power: 140 kW
Recommended rotation speed: 70 rpm
Recommended oil flow at 150 bar: 250–400 l/min
Maximum oil flow: 420 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 26,000 Nm
Maximum cutting force at max. hydraulic pressure: 62,000 N
Maximum uniaxial compressive strength: 100 MPa
Drum cutter length (A): 2,050 mm
Cutter head width (B): 800 mm | 900 mm | 1,000 mm
Cutter drum diameter (C): 850 mm
Width of gearbox (D): 700 mm
Weight: 3,600 – 3,800 kg
Number of picks in cutter drums: 44 | 48 | 56 Pcs
Number of picks in the cutter chain: 63 Pcs
Standard pick 1): ER 17/75/70/30 Q
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 140 is a KEMROC traded product.
Available from 2020.
EK 150
Recommended excavator weight: 35–50 t
Rated power: 150 kW
Recommended rotation speed: 70 rpm
Recommended oil flow at 150 bar: 280–420 l/min
Maximum oil flow: 450 l/min
Maximum operating hydraulic pressure: 380 bar
Maximum torque at max. hydraulic pressure: 30,000 Nm
Maximum cutting force at max. hydraulic pressure: 71,000 N
Maximum uniaxial compressive strength: 100 MPa
Drum cutter length (A): 2,050 mm
Cutter head width (B): 800 mm | 900 mm | 1,000 mm
Cutter drum diameter (C): 850 mm
Width of gearbox (D): 700 mm
Weight: 3,600 – 3,800 kg
Number of picks in cutter drums: 44 | 48 | 56 Pcs
Number of picks in the cutter chain: 63 Pcs
Standard pick 1): ER 17/75/70/30 Q
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 150 is a KEMROC traded product.
Available from 2020.
EK 160
1) Cutter drums can be supplied with picks for special applications as required.
Model EK 160 is a KEMROC traded product.
Available from 2020.
