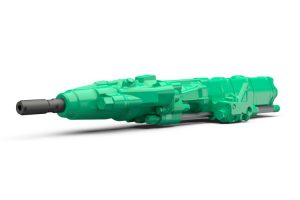

HC109 Hydraulic Drifter
Drifters
HC109 Hydraulic Drifter
- Piston design can be adapted to ground typology and/or hydraulic oil supply
- Choice from a wide selection of front head material and shapes
- Wide rotation torque and rpm setup range
- Mechanical or hydraulic reverse percussion
- Wide range of applications: from long holes in quarries to underground face drilling and from soft to hard rock drilling
- Stainless steel front head available for corrosive environments
- Strong reputation for high reliability and long lifespan
- 35 years of continuous research, development and improvements
- Overview
- Specifications
- Upgrades and Options
The HC109 Hydraulic Drifter is known for the following Overviews:
- Ready for surface and underground drilling
- Suitable for both factory new and existing machines
| Weight | 170 kg |
| Overall length without shank | 1,072–1,270 mm |
| Overall length with shank | 1,274–1,420 mm |
| Overall width | 320 mm |
| Height | 200 mm |
| Height above shank axis | 78 mm |
The HC109 Hydraulic Drifter is known for the following Upgrades and Options:
- Shank adapters
- Overhaul kits
